220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness

Ask Lasest Price
Brand Name :	Tengtian
Model Number :	TT3X1600
Certification :	CE, ISO9001, BV
Price :	$100000 to $1 million
Payment Terms :	L/C,T/T,Western Union
Supply Ability :	40 Sets/Year
Delivery Time :	120 work days

Add to Cart

Product Details
Company Profile

220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness

Overview

Quick Details

Cutting Width (mm):: 900 - 1600 mm

Material Thickness(mm):: 0.5 - 3 mm

Cutting Speed(m/min):: 2000 - 6000 mm

No. of Slitting Lines:: 1 - 13

Coil Weight (T):: 30 T

Place of Origin:: China

Brand Name:: Tengtian

Condition:: New, New

Voltage:: 380v

Rated Power:: 200kw

Weight:: 10-15T

Certification:: ISO9001,CE

Year:: 2020

Key Selling Points:: High-accuracy

Warranty:: 1 Year, One year

After-sales Service Provided:: Online support, Video technical support, Engineers available to service machinery overseas

After Warranty Service:: Video technical support, Online support

Local Service Location:: Viet Nam, Philippines, Indonesia, Pakistan, Thailand, Uzbekistan

Applicable Industries:: Machinery Repair Shops, Manufacturing Plant

Showroom Location:: Egypt, Indonesia, Pakistan, South Korea, Chile, Uzbekistan, Malaysia

Type:: Pipe Cutting Machine

Pipe Material:: Carbon Steel

Special require:: Can Design According To The Customer

Strip width:: 800~2000mm

Max.coil weight:: 40000kgs

Separating discs:: 65Mn, OD250 x ID110 x T10/20mm

DC motors:: 280KW, 315KW.

Supply Ability

Supply Ability: 120 Set/Sets per Year Seam Welder

Packaging & Delivery

Packaging Details: Waterproof and seaworthy plywood case

Port: Xingang

Lead Time:

Quantity(Units)	1 - 1	>1
Est. Time(days)	60	To be negotiated

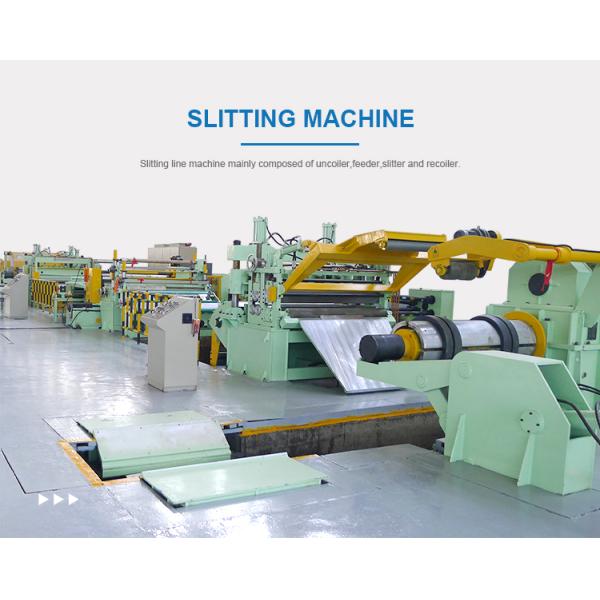

factory price steel coil slitting line machine

Product Description

Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet. At same time,changing different material blade can slit various metal coils.

Main technical parameter:

Material of coils	HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness	(5~20) mm
Strip width	800~2000mm
Max.coil weight	40000kgs
Diameter of leveling rollers & tensioning roller	Φ260
Metal Coil Slitter Diameter of slitter shaft	Φ420
Coil Slitting Machine Disc cutters	6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm
Diameter of recoiler block	Φ800mm
Separating discs	65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler	280KW, 315KW
Coil Slitting Machine Slitting speed	(30-60) m/min, adjustable

Product Process:
Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car.
Model Of Slitting Line:

Model	Plate thickness	Plate width	Steel coil weight	Width of finished	Shear Speed
3*1250mm	0.5-3.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
4*1250mm	0.5-4.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
6*1250mm	0.5-6.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
3*1600mm	0.5-3.0mm	900-1600mm	30 Ton	≥40mm	120(m/min)
4*1600mm	0.5-4.0mm	900-1600mm	30 Ton	≥60mm	110(m/min)
6*1600mm	1-6mm	900-1600mm	30 Ton	≥60mm	100(m/min)
8*2000mm	2-8mm	900-2000mm	35 Ton	≥70mm	60(m/min)
10*2200mm	3-10mm	900-2200mm	35 Ton	≥80mm	50(m/min)
12*2200mm	3-12mm	900-2200mm	35 Ton	≥100mm	40(m/min)
16*2500mm	4-16mm	900-2500mm	35 Ton	≥100mm	40(m/min)
20*2500mm	6-20mm	900-2500mm	35 Ton	≥100mm	30(m/min)

This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require. Send inquiry here
